Digital LCD Single phase Din Rail Electric Meter 10-40A Electronic KWh Meter
Key Words:
Electric,Meter§Single,Phase,Electric,Meter§Din,Rail,Electric,Meter§Din,rail,Energy,Meter§Electronic,KWh,Meter§Single,Phase,Din,Rail,Energy,Meter
Features:
1、The meter can directly and accurately measure active energy of the energy consumption. 2、LCD display is 7+1 digits meter shows the total power consumption. 3、It features high reliability, small volume, light weight, beautiful appearance, advanced technology, etc. 4、It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life. 5、This energy meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, etc.
Specification:
Description: The meter can directly and accurately measure active energy of the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, etc. Features: The meter can directly and accurately measure active energy of the energy consumption. LCD display is 7+1 digits meter shows the total power consumption. It features high reliability, small volume, light weight, beautiful appearance, advanced technology, etc. It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life. This energy meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, etc. Specification: Phase number: single phase Type: guide type Display mode: LCD Reference current: 10(40)A Insulating capacity: Operational current range: 0.04A-60A/ 0.08A-100A Over current withstand: 1800A/ 3000A for 0.01s Operational frequency range: 50Hz ±10% Internal power consumption: ≤2W/ 10VA Test output flash rate (RED LED): 500 impulses per kWh Pulse output rate (pins 20 & 21): 500 pulses per kWh Consumption indicator (RED LED): Flashing on load Backlight LCD display: 7+1 digits Maximum cable capacity: 25mm² Operating humidity: ≤85% Storage humidity: ≤95% Operating temperature: -10℃ - +50℃ Storage temperature: -30℃ - +70℃ Accuracy class: 1 Protection level: IP53 Color: White Size: Approx. 14 x 7 x 3.2cm / 5.5 x 2.7 x 1.2inch Weight: 179g Package Included: 1 x Din-rail Energy Meter

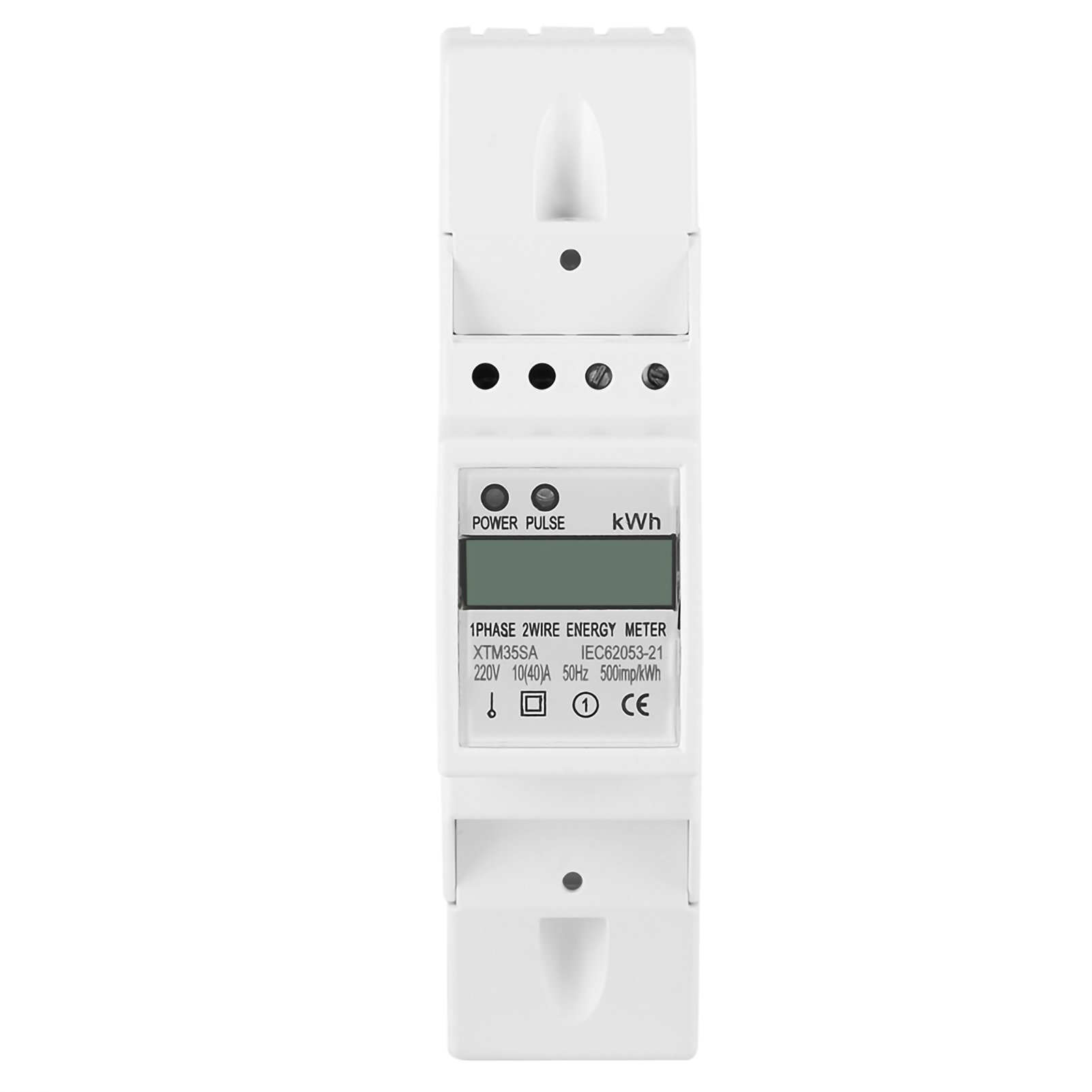

Product Image:
Electric,Meter§Single,Phase,Electric,Meter§Din,Rail,Electric,Meter§Din,rail,Energy,Meter§Electronic,KWh,Meter§Single,Phase,Din,Rail,Energy,Meter
Features:
1、The meter can directly and accurately measure active energy of the energy consumption. 2、LCD display is 7+1 digits meter shows the total power consumption. 3、It features high reliability, small volume, light weight, beautiful appearance, advanced technology, etc. 4、It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life. 5、This energy meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, etc.
Specification:
Description: The meter can directly and accurately measure active energy of the energy consumption. It features high reliability, small volume, lightweight, beautiful appearance, advanced technology, etc. Features: The meter can directly and accurately measure active energy of the energy consumption. LCD display is 7+1 digits meter shows the total power consumption. It features high reliability, small volume, light weight, beautiful appearance, advanced technology, etc. It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life. This energy meter is suitable for the measurement of rated frequency 50 Hz single-phase ac active electricity, etc. Specification: Phase number: single phase Type: guide type Display mode: LCD Reference current: 10(40)A Insulating capacity: Operational current range: 0.04A-60A/ 0.08A-100A Over current withstand: 1800A/ 3000A for 0.01s Operational frequency range: 50Hz ±10% Internal power consumption: ≤2W/ 10VA Test output flash rate (RED LED): 500 impulses per kWh Pulse output rate (pins 20 & 21): 500 pulses per kWh Consumption indicator (RED LED): Flashing on load Backlight LCD display: 7+1 digits Maximum cable capacity: 25mm² Operating humidity: ≤85% Storage humidity: ≤95% Operating temperature: -10℃ - +50℃ Storage temperature: -30℃ - +70℃ Accuracy class: 1 Protection level: IP53 Color: White Size: Approx. 14 x 7 x 3.2cm / 5.5 x 2.7 x 1.2inch Weight: 179g Package Included: 1 x Din-rail Energy Meter
Product Image:
